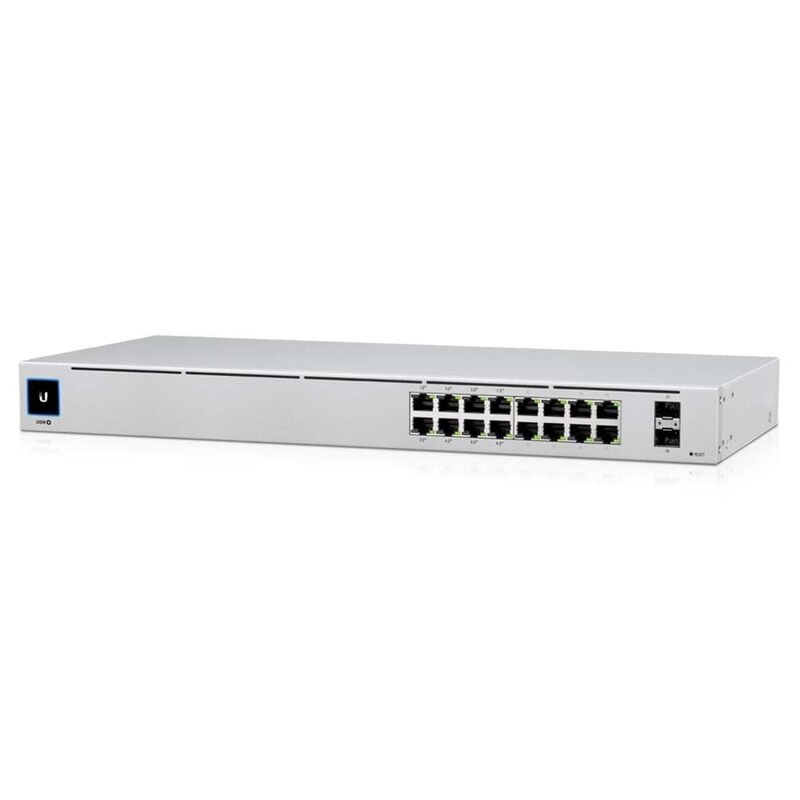

Ubiquiti Standard 16 Port PoE Switch
A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.
(8) GbE PoE+, (8) GbE ports
(2) 1G SFP ports
42W total PoE availability
Fanless, silent cooling
Non-returnable
Choose Quantity :
Product Information
Product Details
| Mechanical | |
|---|---|
| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight | Without mounting brackets: 2.8 kg (6.2 lb) With mounting brackets: 2.9 kg (6.4 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 18 Gbps |
| Switching capacity | 36 Gbps |
| Forwarding rate | 26.78 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 60W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 18W (Excluding PoE output) |
| Total available PoE | 42W |
| Max. PoE wattage per port by PSE | PoE+: 32W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP | Link/activity |
| Application Requirements | |
| UniFi Network | Version 7.2.94 and later |
