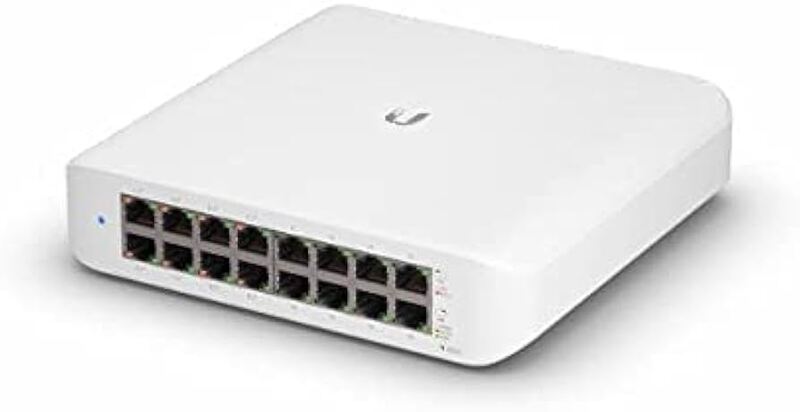

Ubiquiti Lite 16 Port PoE Switch
A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.
(8) GbE PoE+, (8) GbE ports
45W total PoE availability
Wall mountable
Non-returnable
Choose Quantity :
Product Information
Product Details
| Mechanical | |
|---|---|
| Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 16 Gbps |
| Switching capacity | 32 Gbps |
| Forwarding rate | 23.808 Mpps |
| Power method | Universal input, 100—240V AC |
| Power supply | AC/DC, internal, 60W |
| Max. power consumption | 15W (Excluding PoE output) |
| Total available PoE | 45W |
| Max. PoE wattage per port by PSE | PoE+: 30W |
| Button | Factory reset |
| Ambient operating temperature | -15 to 40° C (5 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| PoE | Link/activity |
| Application Requirements | |
| UniFi Network | Version 7.2.94 and later |
